H.265 5.0MP Hi3516A Sony IMX178 Module Starvis CCTV IP Box Camera with SDK TF card backup

Product Description

H.265 5.0MP Hi3516A Sony IMX178 Module Starvis CCTV IP Box Camera with SDK TF card backup

Product Description


Highlight:



H.265 / 5.0 MP @30fps real time / Sony IMX178 + Hi3516A /



Starvis (Startlight) / HDMI Output



> H.265 / H.264 & MJPEG dual-stream encoding

> 1/1.8" 5.0 Megapixels Progressive Scan with Sony IMX178+ Hisilicon Hi3516A

> Max 25/30fps (real time) @5.0 Megapixels (2592×1944)

> Sony Starvis technology, starlight performance, Min. Illumination:0.0001 Lux @F1.2

> Support Onvif 2.4 protocol

> HDMI output

> D-WDR

> ICR, low light performance

> Multi-brand NVR compatible

> CMS, IE, P2P

> Built-in POE, SD/TF card

> Lightning protection

> Privacy Mask, Motion Detection

> CVBS Video out + Audio in/out + LAN / POE + Alarm + HDMI + USB + Reset + Power





Specification

Model OFK-IPBC/50/SL
Camera
Image Sensor 1/1.8”Sony178 5.0MP
Minimum Illumination 0.001Lux @ F1.2
Shutter 1/50(1/60)s - 1/10,000
Resolution 2592*1944
Frame Rate Max 15fps @5.0 Megapixels (2592×1944),  Max 25/30fps @3.0 Megapixels (2048*1536)
Compression
Video Compression H.265 / H.264 & MJPEG dual-stream encoding
Bite Rate 32 Kbps~16Mbps,support CBR/VBR
Network
Protocol TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP
wireless protocols 802.11b/g/n,WEP,WPA,WPA2
Onvif 2.4 protocol
client application CMS: IE6.0 and above (device embedded Web Server) browsers
App:  iPhone,iPad,Android
Interface
Net Interface One RJ45 10M/100M
General
Compatible mode Multi-brand NVR
Performance ICR, low light
Function optional POE, TF card
Lightning protection
Power Supply DC12V±10% (PoE optional)
Working Environment -30°C~+60°C / Less than 95%RH (no condensation)



H.265 & H.264

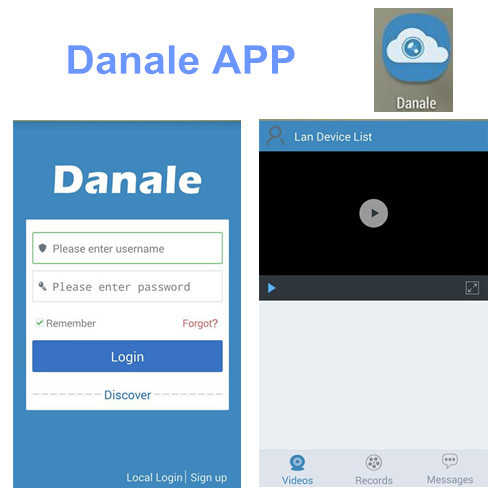

Free Software


Drawings & Dimension



Exhibitions





Packaging & Shipping

H.265 5.0MP IP Box IP Camera module, starlight cctv camera with SD card backup

H.265 5.0MP IP Box ip camera module, starlight cctv camera with SD card backup

H.265 5.0MP IP Box ip camera module, starlight cctv camera with SD card backup

Contact us if you need more details on IP Box Camera. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Sony IMX178 Starvis CCTV IP Camera、CCTV Camera with SDK TF Card Backup. If these products fail to match your need, please contact us and we would like to provide relevant information.
