Super Wide Angle Fish-eye CCTV IP Camera Indoor with POE Onvif

Product Description

Wide Angle IP Camera Fisheye Lens 1080P Network IP Camera ONVIF support NVR



Product Description



IP8S/40

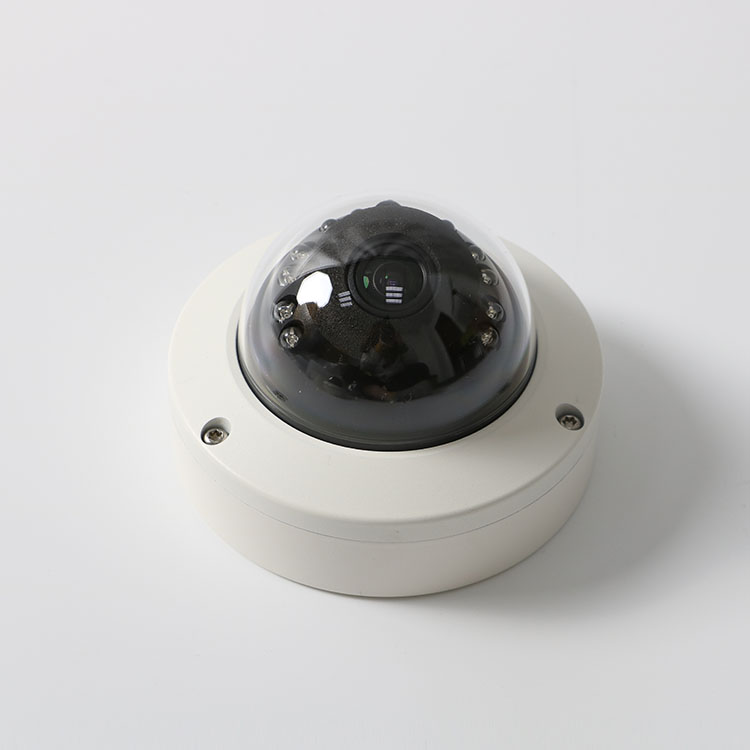

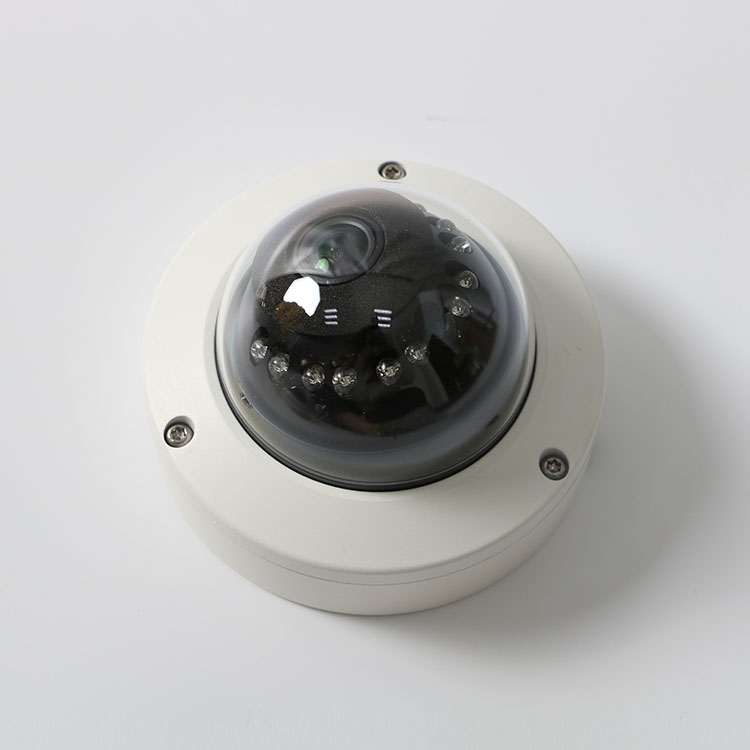

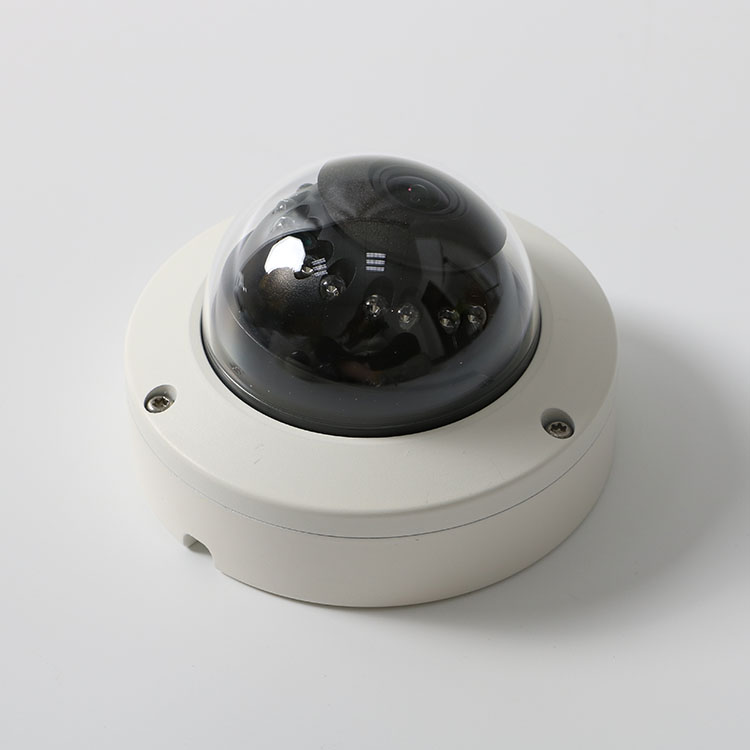

4MP FISHEYE IP DOME Camera

> Max. 25/30fps-4.0MP
> Network IP camera
> 2.1mm fisheye lens
> Max. IR length 20m, Smart IR
> DC12V

Detailed Images






Specifications



Camera

Image Sensor

1/3” 4.0Megapixel progressive scan CMOS

Effective Pixels

2592(H)x1520(V)

RAM/ROM

512MB/32MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.01Lux/F1.6 ( Color,1/3s,30IRE)

0Lux/F1.6 (IR on)

S/N Ratio

Less than 50dB

IR Distance

Distance up to 20m

IR On/Off Control

Auto/Manual

IR LEDs

12

Lens

Lens Type

fisheye

Mount Type

Board-in

Focal Length

2.1mm fixed

Max. Aperture

F1.6

Angle of View

140°

Optical Zoom

N/A

Focus Control

Fixed

Video

Compression

H.264/MJPEG(sub stream)

Streaming Capability

DUAL Streams

Resolution

4.0M(2592*1520)/3.0M(2048*1536)/1080P(1920×1080)/ 1.3M(1280x960)/ 720P(1280x720)

Frame Rate

Main Stream: 4.0MP(1~25fps)

Sub Stream: 720P (1 ~ 25fps)



Bit Rate Control

CBR/VBR



Bit Rate

H.264: 24~ 9472Kbps

H.265: 14~ 5632Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / WDR(120dB)

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization (EIS)

N/A

Smart IR

Support

Defog

N/A

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

G.711a (optional)

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;

FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;

NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;S

NMP;TLS

Interoperability

ONVIF Profile

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

PC Client

Smart Phone

IOS, Android



Interface

Video Interface

1 port(RJ45)

Audio Interface

1/1 channel In/Out

RS485

N/A

Electrical

Power Supply

DC12V

Environmental

Operating Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Storage Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Construction

Casing

Metal

Dimensions

Φ120mm*62mm
