CCTV Starlight Camera Super Low light Color Night Vision Dome Camera

Product Description

CCTV Starlight Camera Super Low light Color Night Vision Dome Camera



Product Description



IR590B series

HD ANALOG METAL DOME CAMERA

> HD CMOS 2MP STARLIGHT/WDR
> 3.6mm/6.0mm Fixed Lens
> 24pcs Led, smart IR 30m Distance (optional)
> Coax transmission BNC output
> Power DC12V

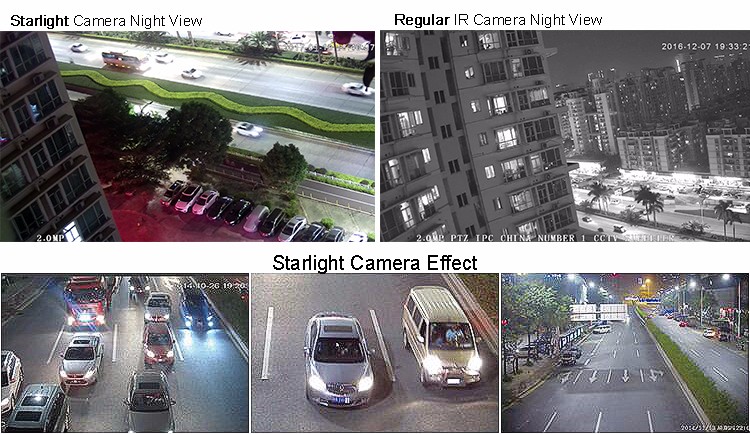

Detailed Images







Specifications



Camera

Model No.

IR590BSSL

IR590B/WAS

Image Sensor

1/2.8 SONY CMOS

1/2.8 SONY CMOS

Effective Pixels

1945(H)X1109(V)

1945(H)X1109(V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25~1/100000s; NTSC: 1/30~1/100000s

Minimum Illumination

0.001Lux,@f1.4

0.001Lux,@f1.4

S/N Ratio

50dB

IR Distance

Up to 30m (98.5eet)

IR On/Off Control

Auto / Manual

IR LEDs

24PCS SMD Led (or no IR led)



Lens

Lens Type

fixed iris

Mount Type

M12

Focal Length

3.6mm/6.0mm

Angle of View

H: 80°/60°

Focus Control

fixed



Video

Resolution

2MP (1920*1080)

2MP (1920*1080)

Video Output

1-CH BNC HD video output;

AHD/CVI/TVI/CVBS video output (Can switch)

Day/Night

Auto (ICR) / Manual

OSD Menu

Multi-language

BLC Mode

BLC / HLC / DWDR

WDR

D-WDR 80dB

 WDR 120dB

Gain Control

AGC

Noise Reduction

Auto

White Balance

Auto / Manual



Other

Audio Interface

N/A (optional)

Heater

N/A

Lightning proof

N/A

Power Supply

12V DC ±25%

Operating Conditions

-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH

Storage Conditions

-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH

Water Resistance

IP66

Casing

Aluminium



More Choices
